Cedar Lakes Estate | Broadacres

Cedar Lakes Estate | Broadacres

Gabion Baskets supplied PVC coated baskets for Cedar Lakes Estate’s project to increase the water level of their Willowmore dam through the installation of a 500x500mm gabion wall.

Client: Cedar Lakes Estate, Cedar Boulevard, Broadacres
Environmental Manager: Featherbrooke Estate
Contractor: Petron Engineering
Project Management: Ian Frisby

Project:
• Increase the water level of the Willowmore dam on the estate by installing a 500x500mm gabion wall around the
edges of the dam.
• Total of 254m of gabions required round the circumference of the dam.
• PVC Coated baskets (4×0.5×0.5m) used.

Completed 74m section.
New foundation (600mm wide) encapsulating exiting foundation.
Completed 74m section - PVC Coated baskets (4x0.5x0.5m) used for construction.
Foundation completed and rock positioned for efficient assembly of baskets.
Completed 120m section.
120m section completed.

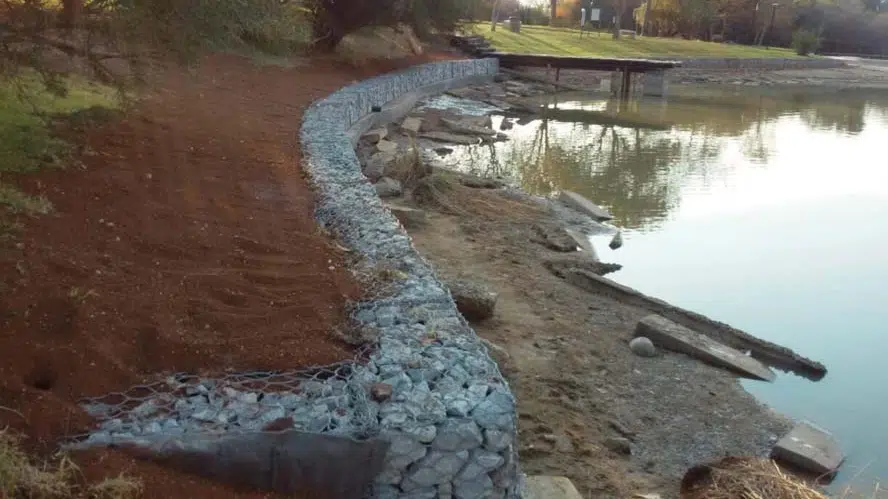

Backfill 60m section.
Completed 60m section with jetty.
Existing foundation exposed. Heavy duty kerb blocks were previously bordering the dam.
Next 120m section.
120m foundation in progress.
60m section completed.
Completed 60m section.
